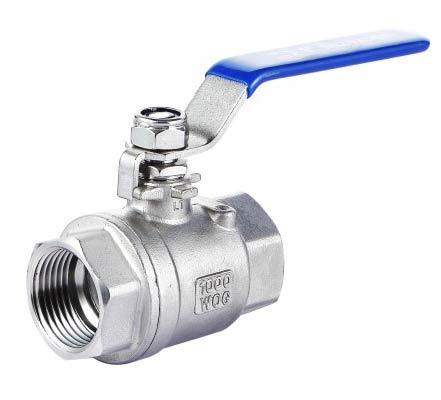

2 Piece Ball Valve Thread End
- Ports::Full Port
- Body Style::Two Piece
- Size Range::DN8-DN100
- Body Material::CF8M, 304 ,316
- Seat Material::PTFE
- Pressure Rating::1000 PSI WOG
- End Connections::1/4"-4"
- Temperature Range::-20℃-180℃
特征 Features
-全通径 Full Port,1/4"-4"(DN8-DN100) |
尺寸列表Dimensions |
单位 Unit :MM |
尺寸 Size |
d |
L |
H |
W |
1/4" DN8 |
10 | 56 | 55 | 95 |
3/8" DN10 | 12 | 56 | 55 | 95 |
1/2" DN15 |
15 |
62 |
55 |
105 |
3/4" DN20 |
20 |
71 |
59 |
128 |
1" DN25 |
25 |
82 |
66 |
146 |
1-1/4" DN32 |
32 |
98 |
71 |
146 |
1-1/2" DN40 |
38 |
108 |
82 |
162 |
2" DN50 |
50 |
120 |
90 |
192 |
2-1/2" DN65 |
65 |
152 |
122 |
220 |
3" DN80 |
80 |
175 |
135 |
250 |
4" DN100 |
100 | 212 | 156 |
300 |
