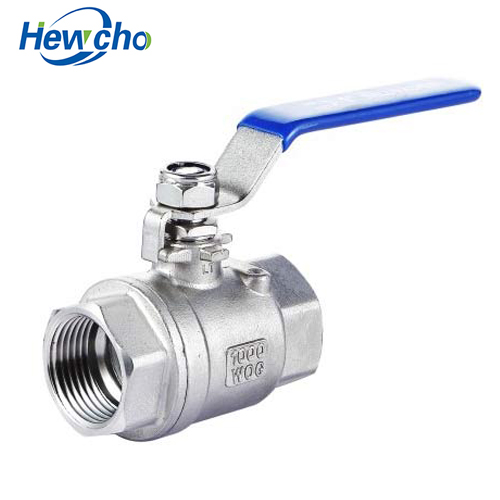

2 Piece Ball Valve Economic Pattern
- Ports::Full Port
- Body Style::Two Piece
- Size Range::DN15-DN80
- Body Material::CF8M, 304 ,316
- Seat Material::PTFE
- Pressure Rating::1000 PSI WOG
- End Connections::1/2"-3"
- Temperature Range::-20℃-180℃
特征 Features
-全通径 Full Port,1/2"-3"(DN15-DN80) |
尺寸列表Dimensions |
单位 Unit :MM |
尺寸 Size |
d |
L |
H |
W |
1/2" DN15 |
15 | 57.5 | 48 | 90.5 |
3/4" DN20 | 20 | 65 | 55 | 100 |
1" DN25 |
25 |
75 |
64 |
115 |
1-1/4" DN32 |
32 |
83 |
80 |
125 |
1-1/2" DN40 |
38 |
94 |
86 |
146 |
2" DN50 |
50 |
111 |
91 |
156 |
2-1/2" DN65 |
65 |
148 |
122 |
220 |
3" DN80 |
80 |
171 |
135 |
250 |
