Products >> 1 Piece Ball Valve >>

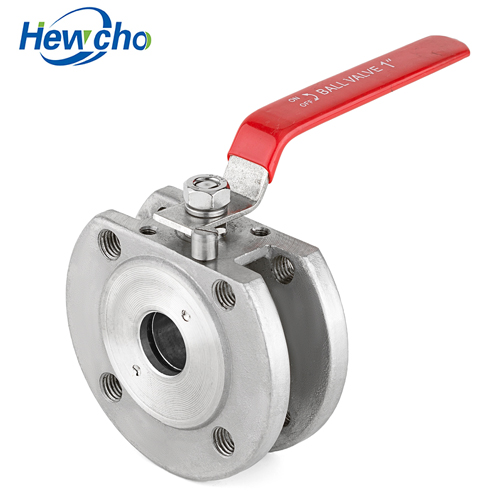

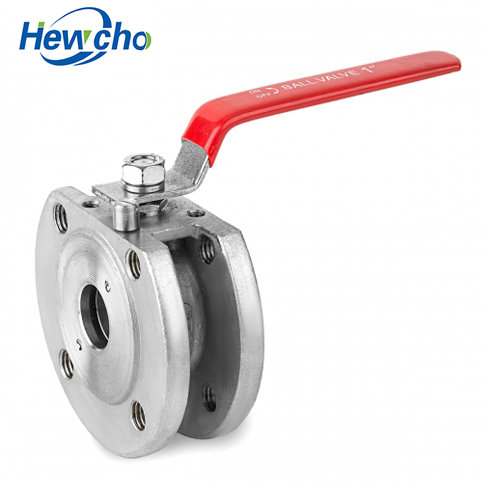

1 Piece Ball Valve With Direct Mounting Pad Flange End Wafer Type
- Ports::Full Port
- Body Style::One Piece
- Size Range::DN15-DN200
- Body Material::CF8M, 304 ,316
- Seat Material::PTFE
- Pressure Rating::PN16/40 Class 150
- End Connections::1/2
- Temperature Range::-20℃-180℃
特征 Features
-全通径 Full Port 1/2"-8"(DN15-DN200) |

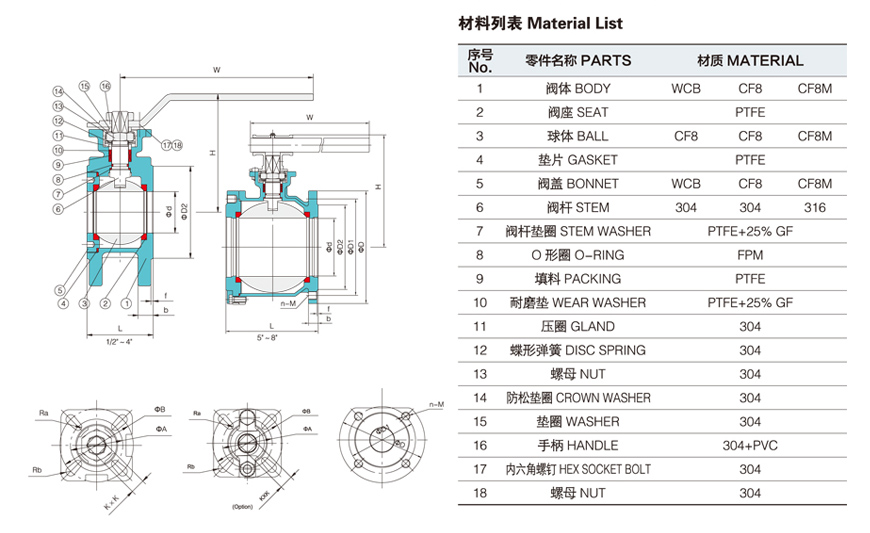

尺寸列表 Dimension PN16 |
单位 Unit:mm |
尺寸 Diameter |
L | d | D2 | D1 | D | b | f | n-M | H | W | Ra | Rb | A | B | K×K |
15 1/2" | 35 | 15 | 45 | 65 | 95 | 10 | 2 | 4-M12 | 81 | 150 | 3.0 | 3.0 | 36 | 42 | 9×9 |
20 3/4" | 38 | 20 | 55 | 75 | 105 | 10.5 | 2 | 4-M12 | 86 | 150 | 3.0 | 3.0 | 36 | 42 | 9×9 |
25 1" | 42 | 25 | 65 | 85 | 115 | 12 | 2 | 4-M12 | 93 | 180 | 3.0 | 3.5 | 42 | 50 | 11×11 |
32 1-1/4" | 53 | 32 | 78 | 100 | 135 | 15 | 2 | 4-M16 | 103 | 180 | 3.0 | 3.5 | 42 | 50 | 11×11 |
40 1-1/2" | 63 | 38 | 85 | 110 | 145 | 16 | 2.5 | 4-M16 | 120 | 210 | 3.5 | 4.5 | 50 | 70 | 14×14 |
50 2" | 72 | 44 | 100 | 125 | 160 | 16.5 | 2.5 | 4-M16 | 127 | 210 | 3.5 | 4.5 | 50 | 70 | 14×14 |
65 2-1/2" | 95 | 57 | 120 | 145 | 180 | 18 | 38 | 8-M16 | 144 | 260 | 4.5 | 5.5 | 70 | 102 | 17×17 |
80 3" | 118 | 73 | 135 | 160 | 195 | 20 | 3 | 8-M16 | 154 | 260 | 4.5 | 5.5 | 70 | 102 | 17×17 |
100 4" | 140 | 90 | 155 | 180 | 215 | 20 | 3 | 8-M16 | 172 | 330 | 4.5 | 5.5 | 70 | 102 | 17×17 |
125 5" | 180 | 110 | 185 | 210 | 250 | 22 | 3 | 8-M16 | 220 | 650 | 5.5 | 6.5 | 102 | 125 | 22×22 |
150 6" | 230 | 145 | 210 | 240 | 285 | 22 | 3 | 8-M20 | 245 | 800 | 5.5 | 6.5 | 102 | 125 | 27×27 |
200 8" | 275 | 195 | 265 | 295 | 340 | 24 | 312 | -M20 | 340 | 1000 | 5.5 | 6.5 | 102 | 125 | 27×27 |
