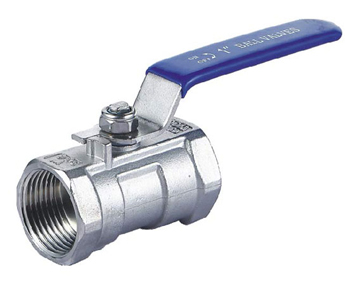

1 Piece Ball Valve Threaded End
- Ports::Reduce Port
- Body Style::One Piece
- Size Range::DN8-DN100
- Body Material::CF8M, 304 ,316
- Seat Material::PTFE
- Pressure Rating::1000 PSI WOG
- End Connections::1/4"-4"
- Temperature Range::-20℃-180℃
The 1 piece stainless steel ball valve is reduce port design. It is simple structure, small zise and light weight. One piece ball valve is know for its low price.1 PC ball valve comes with female BSP or threads on both ports. Commonly used in standard applications where a study valve is required and a reduced flow is not important to the application. Our 1-piece valves are made with quality grade CF8M, 304 or 316 stainless steel, pressure rated at 1000 PSI WOG (Water, Oil, Gas).
1-PC ball valve is wide range of applications, from small size 1/4" to a big size 4", from high vacuum to high pressure can be applied. This valve is normally installed horizontally.
特征 Features
-缩径 Reduce Port |
尺寸列表Dimensions |
单位 Unit :MM |
尺寸 Size |
d |
L |
H |
W |
1/4" DN8 |
5 | 40 | 36 | 71 |
3/8" DN10 | 7 | 45 | 38 | 81 |
1/2" DN15 |
9 |
53 |
35 |
91 |
3/4" DN20 |
12 |
56.5 |
39 |
95 |
1" DN25 |
15 |
67 |
44 |
105 |
1-1/4" DN32 |
20 |
75 |
58 |
119 |
1-1/2" DN40 |
25 |
80.5 |
62 |
131 |
2" DN50 |
32 |
83 |
67 |
138 |
2-1/2" DN65 |
38 |
122 |
85 |
192 |
3" DN80 |
50 |
132 |
96 |
220 |
4" DN100 |
65 | 184 | 122 |
250 |
