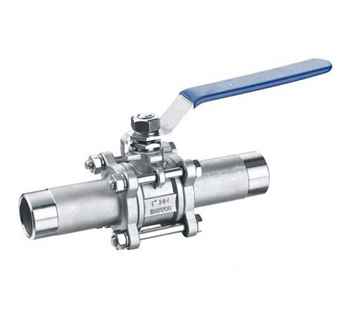

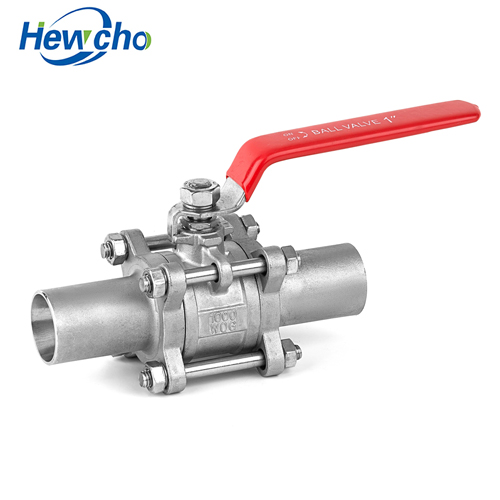

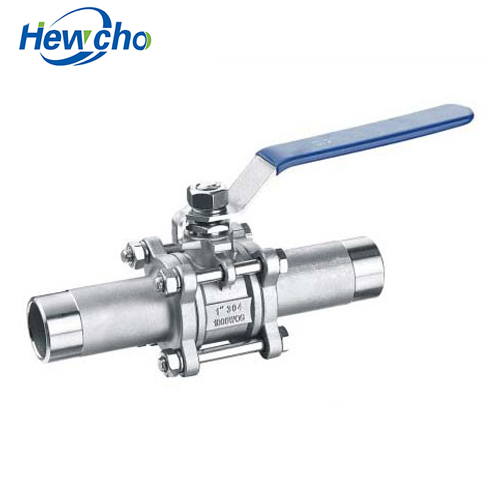

3 Piece Ball Valve Extend Butt Weld End

Ports:：Full Port
Body Style:：Three Piece
Size Range:：DN8-DN150
Body Material:：CF8M, 304 ,316
Seat Material:：PTFE
Pressure Rating:：1000 PSI WOG
End Connections:：1/4”-4”
Temperature Range:：-20℃-180℃
Online Inquiry

特征 Features

-全通径 Full Port,1/4"-4"(DN8-DN100)
-工作压力 W.P.:1000WOG(PN63)
-工作温度 W.T.:-20℃-180℃
-精密铸造 Investment Casting
-阀杆防爆出装置设计 Blow-Out Proof Stem
-手柄带锁装置（可选）Locking Device Handle(Option)
-对焊连接标准Butt Weld Type: ASME B16.11
DIN3239 Part2

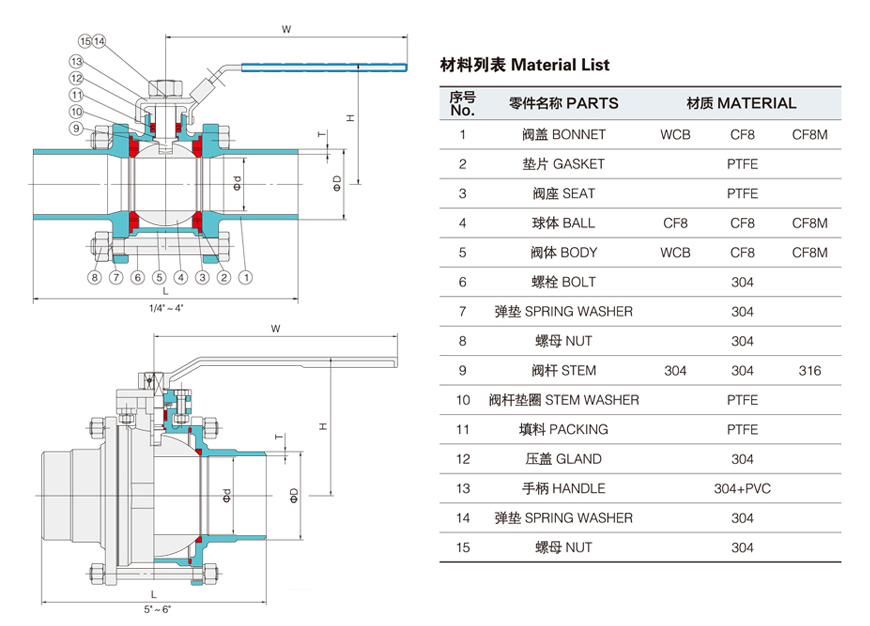

3-PC Ball Valve Extend Butt Weld End Structure

尺寸列表Dimensions

单位 Unit :MM

尺寸 Size	d	L	H	W	D	T
1/4" DN8	10	140	52	95	14.2	2.0
3/8" DN10	12	140	52	95	17.6	2.1
1/2" DN15	15	150	55	105	21.8	2.1
3/4" DN20	20	155	59	128	27.2	2.1
1" DN25	25	185	66	146	33.9	2.8
1-1/4" DN32	32	184	71	146	42.7	2.8
1-1/2" DN40	38	230	82	162	48.8	2.8
2" DN50	50	242	90	192	61.2	2.8
2-1/2" DN65	65	290	122	220	73.9	3.0
3" DN80	80	306	135	250	89.8	3.0
4" DN100	100	326	156	300	115.2	3.0
