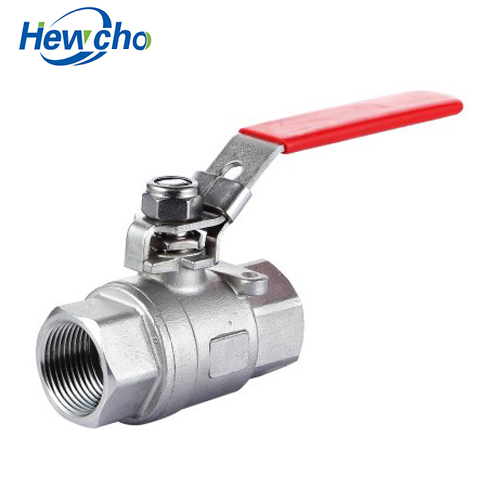

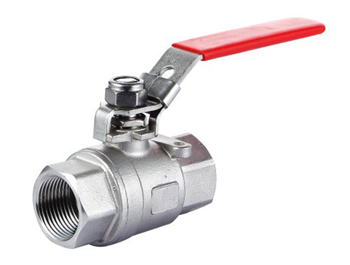

2 Piece Ball Valve Thread End DIN3202 M3

Ports:：Full Port
Body Style:：Two Piece
Size Range:：DN8-DN100
Body Material:：CF8M, 304 ,316
Seat Material:：PTFE
Pressure Rating:：1000 PSI WOG
End Connections:：1/4"-4"
Temperature Range:：-20℃-180℃
Online Inquiry

特征 Features

-全通径 Full Port,1/4"-4"(DN8-DN100)
-工作压力 W.P.:1000WOG(PN63)
-工作温度 W.T.:-20℃-180℃
-精密铸造 Investment Casting
-结构长度 Face to Face: DIN 3202-M3
-阀杆防爆出装置设计 Blow-Out Proof STem
-螺纹连接标准 Thread type:ASME B1.20.1(NPT)
DIN259/DIN 2999,BS 21
ISO 288-1,ISO7-1

2-PC Ball Valve Thread End DIN3202 M3 Structure

尺寸列表Dimensions

单位 Unit :MM

尺寸 Size	d	L	H	W
1/2" DN15	15	75	61	120
3/4" DN20	20	80	68	120
1" DN25	25	90	75	145
1-1/4" DN40	32	110	79	145
1-1/2" DN40	38	120	85	180
2" DN50	50	140	96	180
2-1/2" DN65	65	185	126	240
3" DN80	80	205	135	240
4" DN100	100	240	157	280
