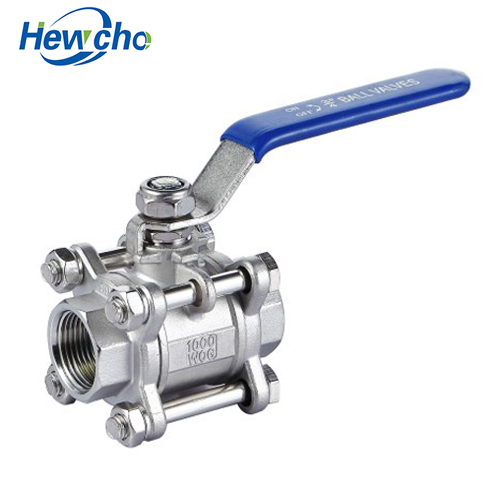

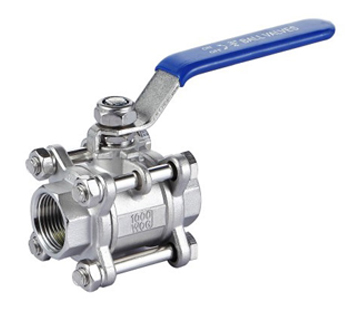

3 Piece Ball Valve Thread End

Ports:：Full Port
Body Style:：Three Piece
Size Range:：DN8-DN100
Body Material:：CF8M, 304 ,316
Seat Material:：PTFE
Pressure Rating:：1000 PSI WOG
End Connections:：1/4"-4"
Temperature Range:：-20℃-180℃
Online Inquiry

特征 Features

-全通径 Full Port,1/4"-4"(DN8-DN100)
-工作压力 W.P.:1000WOG(PN63)
-工作温度 W.T.:-20℃-180℃
-精密铸造 Investment Casting
-阀杆防爆出装置设计 Blow-Out Proof Stem
-螺纹连接标准 Thread type:ASME B1.20.1(NPT)
DIN259/DIN 2999,BS 21
ISO 288-1,ISO7-1

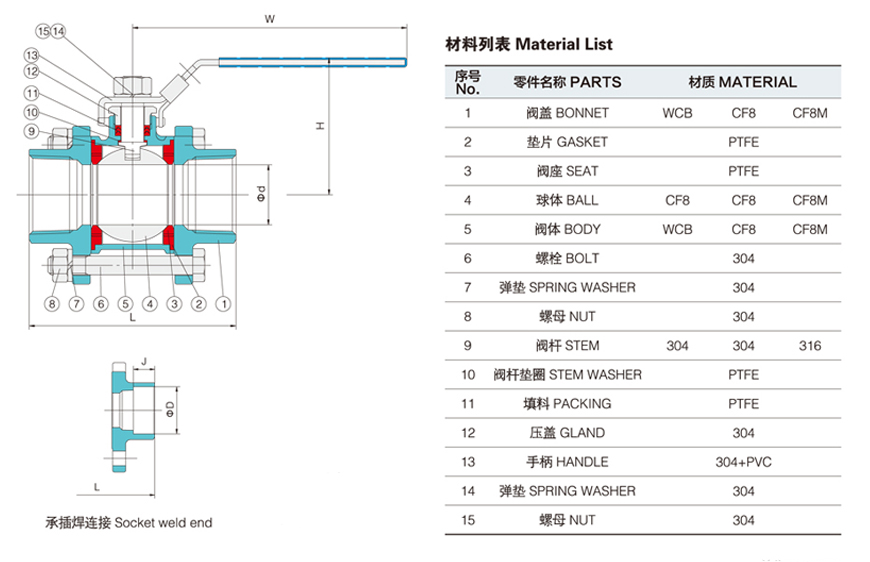

尺寸列表Dimensions

单位 Unit :MM

尺寸 Size	d	L	H	W	D	J
1/4" DN8	10	65	52	95	14.2	9.5
3/8" DN10	12	65	52	95	17.6	9.5
1/2" DN15	15	75	55	105	21.8	9.5
3/4" DN20	20	80	59	128	27.2	12.5
1" DN25	25	90	66	146	33.9	12.5
1-1/4" DN32	32	110	71	146	42.7	12.5
1-1/2" DN40	38	120	82	162	48.8	12.5
2" DN50	50	140	90	192	61.2	16
2-1/2" DN65	65	168	122	220	73.9	16
3" DN80	80	194	135	250	89.8	16
4" DN100	100	250	156	300	115.2	19
